Manual Gauging Systems

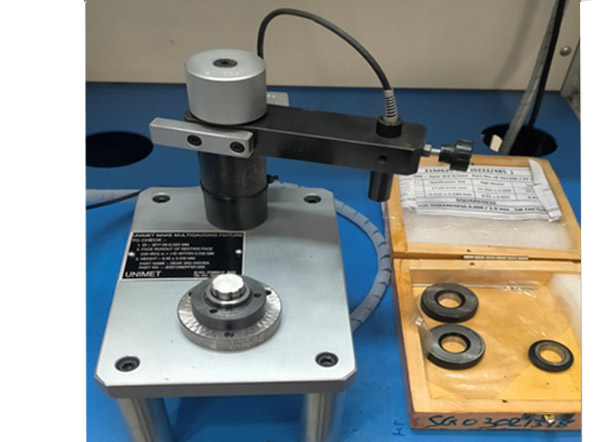

Manual Gauging Fixture - Gear CNC Blank

This Fixture is used to measure ID, Height, groove width, parallelism and face run-out parameters of the gear manually on a gauging station

Manual Gauging for Gear CNC Blank
Manual Gauging for Gear CNC Blank

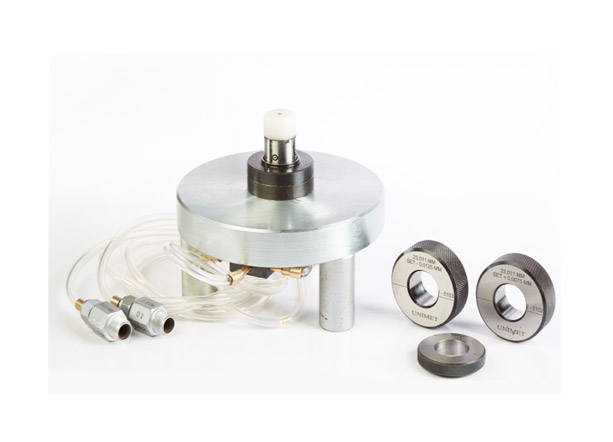

Manual Gauging - ID & Face Run-Out
ID & Face R/O w.r.t. ID (Squareness) Checking Gauge

This Fixture is used to measure ID and Face run-out parameters of the bearing case manually on a gauging station

Manual Gauging for ID & Face Run-Out
Manual Gauging for ID & Face Run-Out

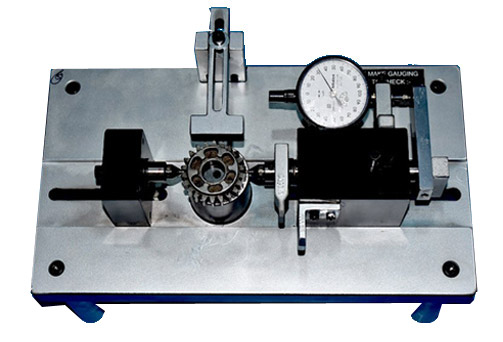

Manual Gauging - Over Ball Diameter (OBD)

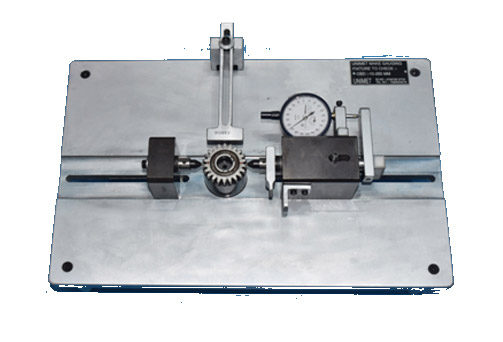

Model 1 : OBD 150

These Fixtures are used to measure the Over Ball Diameter of the gear by bringing a pair of measuring elements into contact with the tooths facing each other

  • An Over Ball Diameter measuring device for measuring the over-ball diameter of a gear by bringing a pair of measuring elements into contact with the tooths facing each other.
  • Measuring Range – 150 mm, 200 mm, 300 mm.
  • Height can be adjusted as per the component length.
  • Checking Position Range (Vertical Range) – 50 mm.
Manual Gauging for Over Ball Diameter

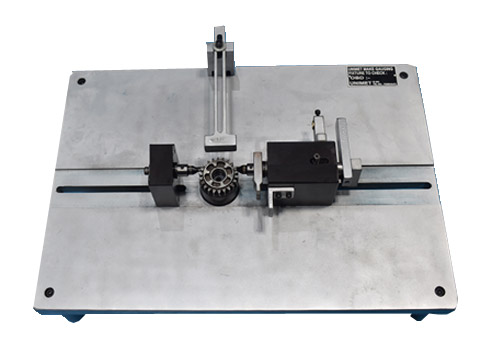

Model 2 : OBD 200 anual Gauging for Over Ball Diameter
Model 3 : OBD 300 anual Gauging for Over Ball Diameter

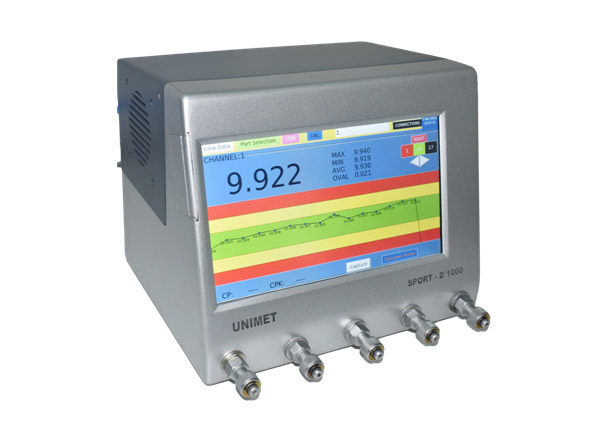

OBD Fixture with SPORT-D 1000 Unit anual Gauging for Over Ball Diameter
